AUGER FILLING MACHINE WITH WEIGHING SYSTEM
Auger Filling machine is used for packing of Powders & semi powder products such as Spices, Milk Powder, Chemicals, Flour, Besan, Maida, Pesticides, etc. The products are highly durability and features with excellent performance that can successfully handle varied non free flowing powdered products.
Technical Specifications :
Filling Capacity : 10 gm. to 10 Kg. (By different models).
Filling Speed : Depending on the product characteristics and weight
Volume control : Clutch brake / servo motor Controlled Auger Screw.
Power Supply & Consumption: Single phase, 220VAC, 50Hz, 2 HP
Stirrer : A opposite direction stirrer moves in the Hopper for better filling.
Contact Parts : Made of SS-304.
Electric foot paddle switch used for easy and efficient working of the machine.
Optional Attachments : Screw Feeder (Open / Close Type)
ELECTRONIC-VIBRATORY LOAD CELL WEIGHING SYSTEM
Loadcell controlled weigh filler is used to weigh and fill free flows non-sticky material such as Tea, Rice, Pulses, Sugar, Seeds, Chemicals, Nankeens, Dry Fruits, etc in a wide range of consumer packs with highly accurate weight based system, ensuring high speed and easy changeover time.
Technical Specifications :
Filling Capacity : 10 Gms. to 50 Kgs. (By different size and models)
More Production : Can add more heads for more production.
Power Required : 220 VAC, single phase, 50 Hz
Feeding system : Linear vibrators are used for feeding the material.
Weigh unit : Load cell controlled weigh filler unit to get more accuracy.
All contact parts with material are made of SS-304.
Pneumatic technology used for easy and efficient working of the machine.
Optional Attachments : Infeed Conveyor (Belt / Bucket Type)

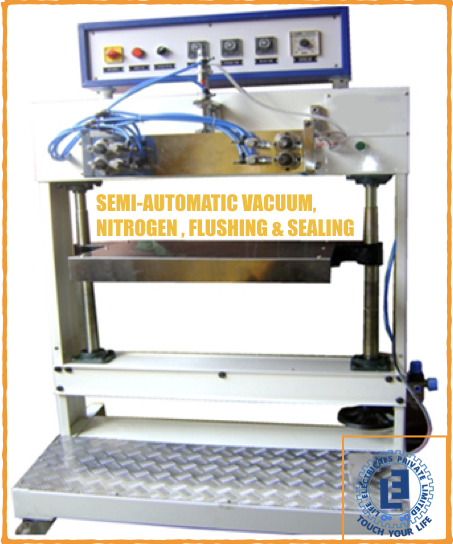

SEMI-AUTOMATIC VACUUM, NITROGEN , FLUSHING & SEALING MACHINE (VNS)
This is a Semi-Automatic pneumatically operated vaccumising, sealing and Nitrogen Flushing Machine to enhance the product self life. The product can be pack any kind of a Powder, Dairy foods, Snacks food, Sea foods, Dry fruits, etc.
Technical Specifications :
Pouch Length : 75mm(Min) – 300mm(Max)
Pouch Width : 75mm(Min) – 350mm(Max)
Pouch holding by silicon rubber to avoid wastage of Nitrogen.
Speed : 5 -10 Pouches /min (Depends on Size of the pouch, Degree of vacuum required, Packing material, Type of product, Operator’s efficiency)
Power Supply : 220 V AC, Single Phase, 50 Hz
Consumption : 2.5 KW
Compressed Air Required : 10 cfm@ 6 Bar
Vacuum pump is included with the machine

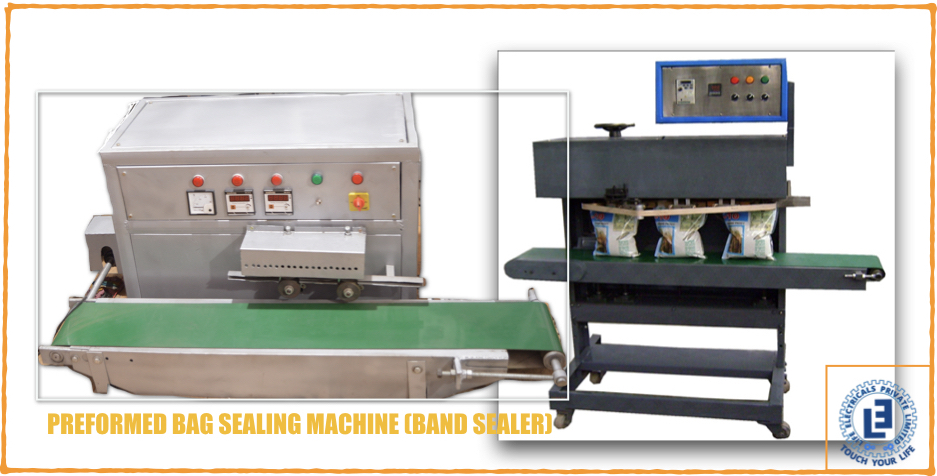

PREFORMED BAG SEALING MACHINE (BAND SEALER)
This is a Semi-Automatic Band Sealing Machine to seal Pre-formed heat sealable pouch for low end production area. This machine can be supply along with Semi-Automatic Filling system to fill the product into the preformed pouches.
Technical Specifications :
Any type of pouch (three sides, four sides, center seal, stand up, zipper etc) can be sealed.
Adjustable Conveyor Height : 50mm to 625 mm
Take out Conveyor Speed : 5to10 meter/min
Teflon belts are used for sealing.
Power Supply : 220VAC , Single Phase
Consumption : 1.5 KW
Speed depends on: Size of the pouch, Degree of vacuum required, Packing material
Any Filling system can be attached with this machine.
Cooling fan for cooling of pouch / Teflon belts.
Machine has Continuous Sealing and Cooling System
