Material Movement Conveyors

Material Movement Conveyors

With the help of our team of technical professionals, we are involved in offering superior quality Material Movement Conveyors. For the transition of products, we provide these conveyors in various industries such as food processing, packaging, textile, pharmaceuticals, chemical and many more. Offered conveyors are fabricated with the utilization of premium quality components and advanced technology, which ensures their smooth functioning. Clients can avail these stringently examined Material Movement Conveyors in different technical options at affordable prices.

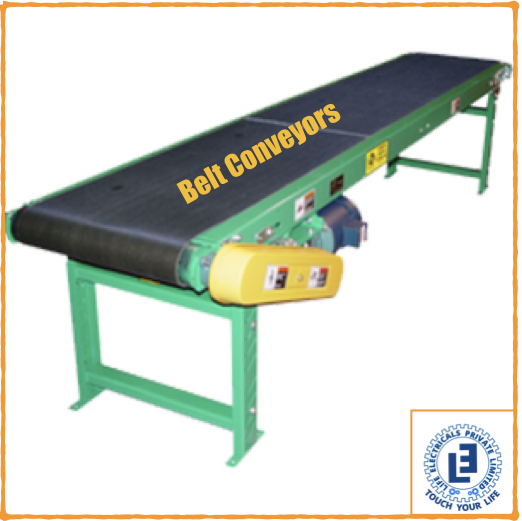

Belt Conveyors

Belt Conveyor is used for carrying products from filling to packing destinations and various other applications as per requirement. Very simplified operation and almost zero maintenance, easy cleaning.

Technical Specifications :

Size – As per customer requirements.

Conveyor belt – Green / Black / White color PVC

Material : SS-304

Motor : 0.5HP with Gear Box, 3 Phase, 415 VAC

Available in Fix speed & variable Speed (as per requirement)

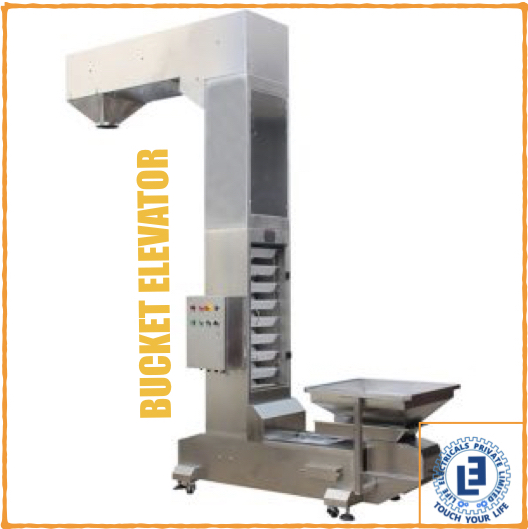

BUCKET ELEVATOR

Bucket Elevator is used for granular materials bulk conveying ascension such as chips, peanut, sweets, dried fruits, vegetables, frozen food, chemical and other granular or block items. Hoist hopper is made of food-grade polypropylene (PP) with artistic looking deformation difficult resistance heat and cold.

Technical Specifications :

Frame material : Stainless steel / Carbon steel

Power : 220V/415V AC, 50Hz

Height : 3940mm

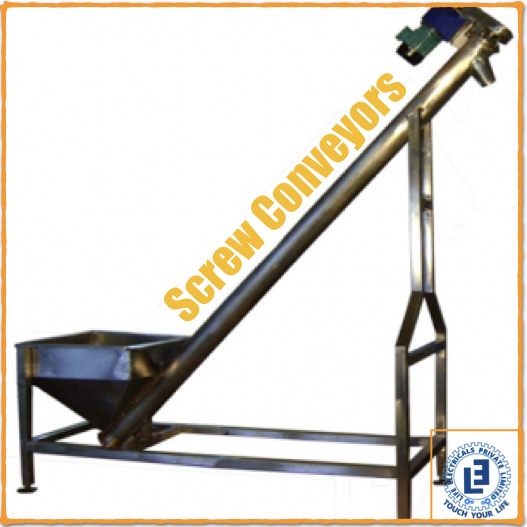

Screw Conveyors

Screw feeder is used to feed powder materials in upper hopper of filling machine. It is suitable for Flour, Milk powder, Spice powder, Besan, Maida & other powder products. It is available in various specifications and can be effectively customized to the specific needs of the clients.

Features:

vAll contact parts are made of SS- 304.

vMain hopper capacity – 100-200 Kgs. (depends upon density of material).

vDiameter of pipe- 5” to 10” (according to feeding capacity).

vTwo models (open & close type) are available.

vAutomatic material controlling in upper hopper.

vGeared Motor – 2 HP, 3 phase 440 V AC.

vVibrator is mounted on main hopper for better feeding.

vPower requirement – 440 V AC, 50 Hz. 2 kW (max).











Take away conveyors

Takeaway Conveyor improves the productivity of packaging operations by simply moving filled pouches / bags from the Packaging  Machine up to bench height, or to another location.

Designed to maximize available space, the Takeaway Conveyor is a continuous motion conveyor designed to accommodate most bag packaging applications.

Features :

Variable Speed

Belt Material : PVC, PU, Rubber (with Clits of height 20mm to 40 mm)

Structure :  SS 304

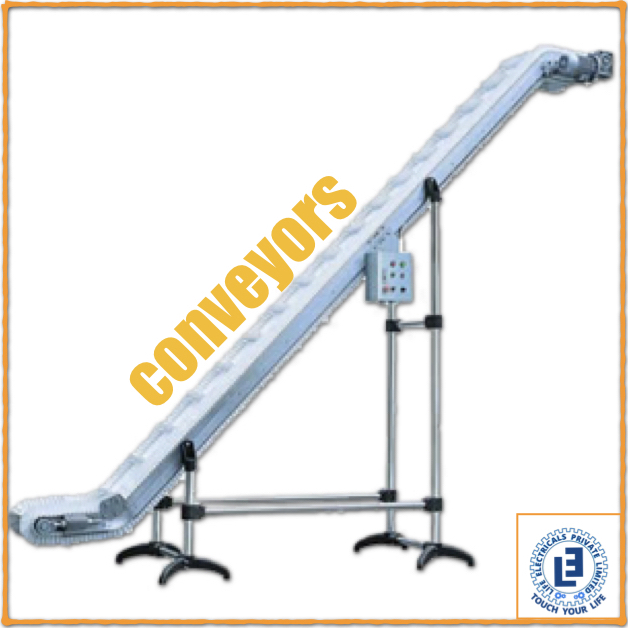

Z shaped conveyors

Z-shaped small conveyor belts often serve to discharge piece goods as well as bulk goods from production and packaging facilities and for subsequent filling into containers or delivery to further processes.
