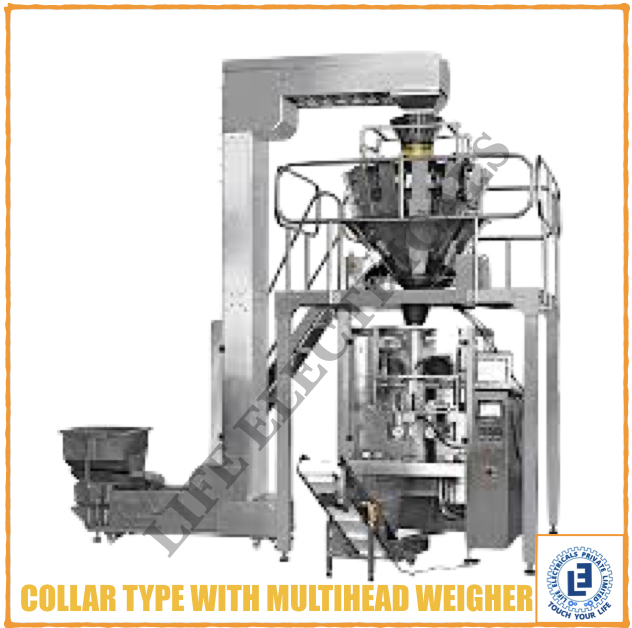

COLLAR TYPE WITH MULTI-HEAD WEIGHER
Automatic Vertical Form Fill Seal Machines (Collar type) with Multihead weigh filler (10 / 14 heads) is used to weigh & fill products such as Granular / Sticky regular / irregular shape material by using highly accurate and fast method comprising multi head combination weighing.
Technical Specifications :
Packing Range : Up to 2 Kgs. (Depends upon product density).
Sealing Type : Center seal, Intermittent Type.
Film Type : Heat sealable, Pet Poly.
Measuring Method: Load Cell Based combination weighing.
Liquid crystal and touch screen with optional language makes it easy to operate.
Speed : Up to 100 Pouches per min. (Depends upon product, weight & Numbers of heads)
Electric Control : By PLC with touch screen HMI.
Temp. Controller : PID control, Digital 45 x 45 mm.
Paper Pulling : By Pulling belts & Pneumatic Pressure.
Compressed Air : 6 CFM at 6 Bar Pressure
Power Required : Three phase, 440 VAC, 50 Hz, 6 kW.
Optional Attachment : Platform with Staircase, Pendulum Bucket Elevator, Infeed Conveyor, Outfeed conveyor, Four Line Ink Coding System

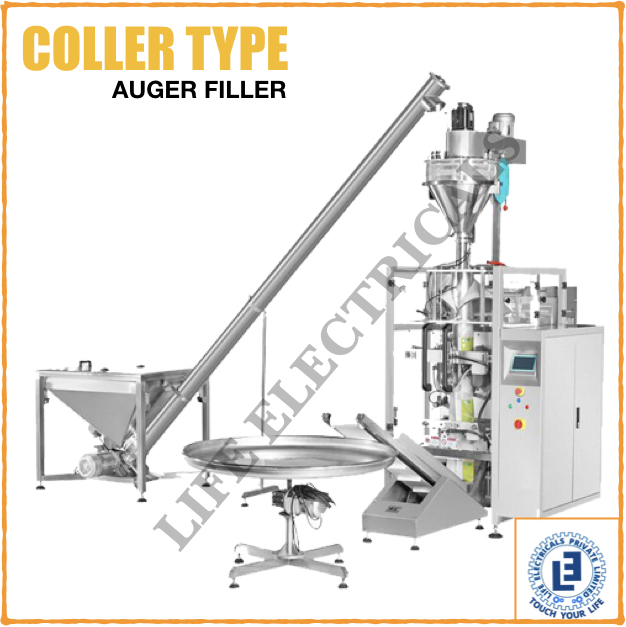

COLLAR TYPE WITH AUGER FILLER – Upto 1kg Powder
VFFS (Collar Type) with Auger Filler is an PLC controlled intermittent Center Seal Bag making machine suitable for packing various kind of powders like Atta, Besan, Maida, etc upto 1Kg in a Heat Sealable Laminates such as PET / MET BOPP/ POLY , Paper laminate etc.
Technical Specifications :
Feeding head : Auger Screw Filler with Servo Driven motor.
Production Speed: 30 – 35 pouches per minutes @ 1kg
Machine control system : P.L.C (Screen touch Programmed Logic Controller).
Packing range : Upto 1kg
Pack Size : RW RL
Min 160 mm 80 mm
Max 500 mm 350 mm
Type of Sealer : Hermatic Sealing System
Style of Pack : Center sealed Pillow type.
Compressed Air pressure : 6kg / cm2 at 40 C.
Air consumption : 40 m3 / Hour.
Power Consumption : 6 kW / Hour.
Peak Power : 8 kW.
Power requirement : 3 Phase,415V, 50Hz

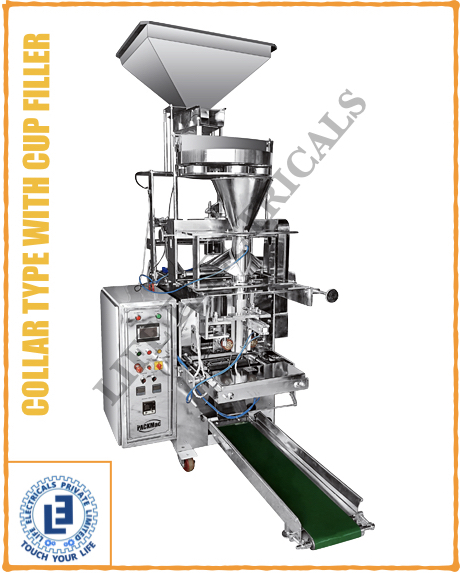

COLLAR TYPE WITH CUP FILLER
The VFFS (Volumetric Cup Filler) Collar Type Machine is suitable for packing granules various applications like Pulses, Rice, Sugar, Suji, Tea, Snacks, Pesticides,etc upto 1 kg.
Technical Specifications:
Pack Size : 100gms-1000gm
Roll Width : 150mm(Min) – 400mm(Max)
Automation : PLC Controlled, PID Temp Controller, HMI
Speed : 40-50 Bag/Min (Depend on the product and Quantity to be packed)
Type of Bag : Center Seal
Power Supply : 415VAC, 3 Phase,50Hz
Consumption : 3.8 KW
Compressed Air Required : 6CFM@6 Bar
Product Contact Parts : SS-304
Optional :Batch Coding Device, Nitrogen flushing unit, Infeed conveyor, Outfeed conveyor, Batch cutting unit, Pouch gusseting unit
COLLAR TYPE WITH AUGER FILLER – 5kg & 10kg Powder
VFFS (Collar Type) is an PLC controlled intermittent Center Seal Bag making machine can pack up to 10 Kg of various kind of Powder suitable for wide range of heat sealable film such as PET / MET BOPP/ POLY ,Paper laminate. Etc.
Technical Specifications :
Feeding head : Auger Screw Filler with Servo Driven motor.
Production Speed: 12 – 15 pouches per minutes @ 5kg
8 – 10 pouches per minutes @ 10kg
Machine control system : P.L.C (Screen touch Programmed Logic Controller).
Packing range : 5 – 10kg
Pack Size : RW RL
5kg 660 mm 450 mm
10kg 820 mm 560 mm
Filling Accuracy : +/- 1% (Max)
Type of Sealer : Hermatic Sealing System
Style of Pack : Center sealed Pillow type.
Compressed Air pressure : 6kg / cm2 at 40 C.
Power Consumption : 7 kW / Hour.
Peak Power : 10 kW.
Power requirement : 3 Phase,415V, 50Hz
